Dymantia stone pickers for large and medium stones
Stop going around large stones
- Increase the yield and the revaluation of the land .
- Protect sensitive machinery such as harvesters or rotocultivators.
- Picks up large stones, 8-10 cm up to 200-300 kg, from the surface of the ground.

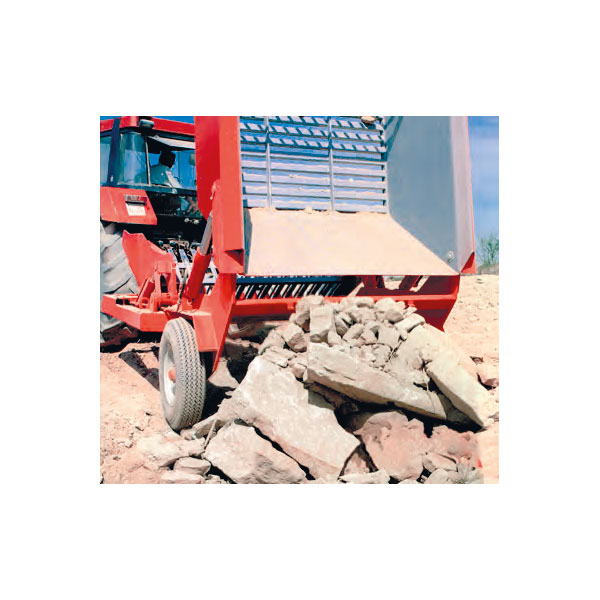

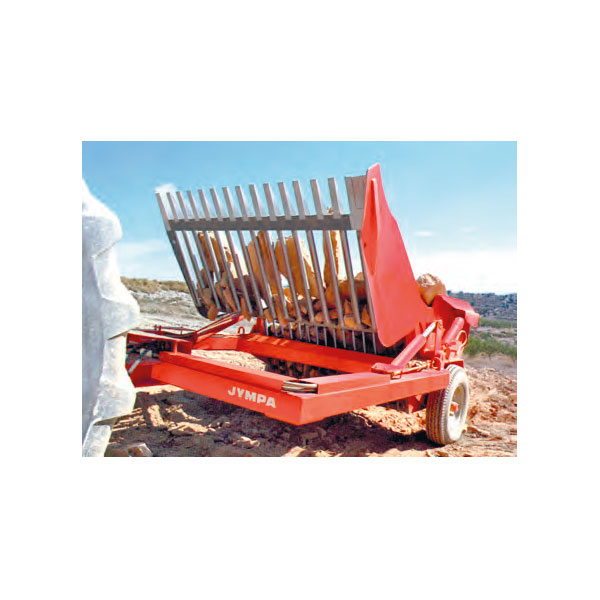

- The stones are collected by a barbed rake, deposited in a hopper and finally emptied on the side of the farm.
- Fully hydraulic
- High robustness and reliability. For life.
- Excellent results on highly rocky terrain.
- Wide range of models. For tractors of all powers.
- Spare parts that are easy to install.
Accessories
Extra bottom grate
To make a larger sieve and collect smaller stones.
Hydraulic coupling
Allows you to rotate better in narrow places.
Technical features
| Model | Tractor power | Machine width | Working width | Height | Lenght | Volume | Unload height | No. of rakes | Tires | Approximate weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DYM-160 | 065-090 HP | 1.96 m | 1.60 m | 1.66 m | 4.21 m | 1.50 m3 | 1.50 m | 9 | 7.50 / 16 | 1675 kg |
| DYM-210 | 090-130 HP | 2.33 m | 2.00 m | 1.48 m | 4.77 m | 1.95 m3 | 1.22 m | 9 | 7.50 / 16 | 2150 kg |
| DYM-210-XL | 100-140 HP | 2.32 m | 1.87 m | 1.93 m | 5.03 m | 3.00 m3 | 1.65 m | 12 | 8.25 / 15 | 2980 kg |
| DYM-240 | 120-140 HP | 2.74 m | 2.37 m | 1.50 m | 4.77 m | 2.55 m3 | 1.24 m | 11 | 8.25 / 15 | 2400 kg |
| DYM-240-XL | 140-160 HP | 2.90 m | 2.37 m | 2.00 m | 5.03 m | 3.98 m3 | 1.72 m | 15 | 285 / 70 R 19.5 " | 3520 kg |
| DYM-210-NM | 150-180 HP | 2.33 m | 2.05 m | 2.08 m | 5.45 m | 3.50 m3 | 1.98 m | 9 | 315 / 80 R 22.5 " | 3640 kg |
Catalogue
More information
