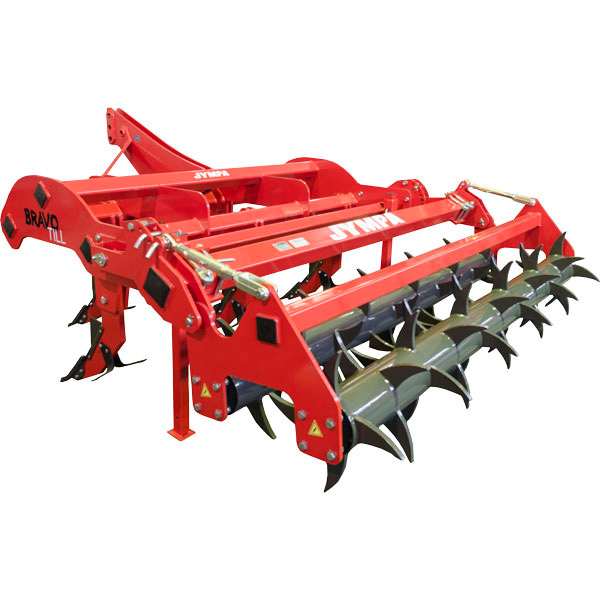

Sirius subsoilers with mechanical safety system
The most rugged

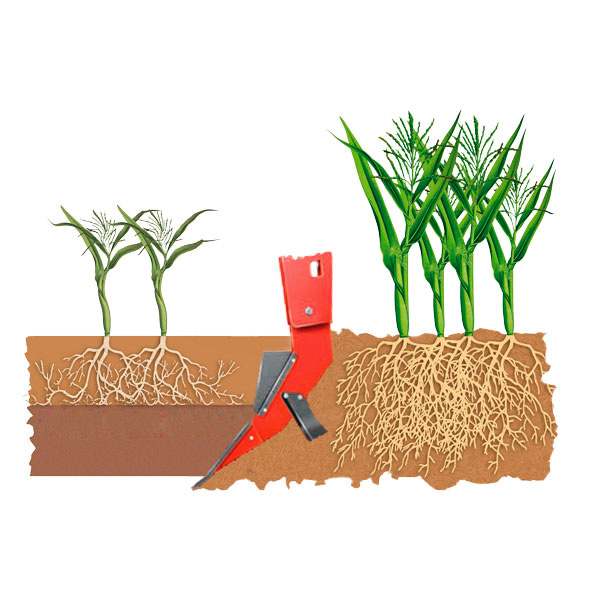

- It decompresses and removes the subsoil to oxygenate it, to favour the filtration of the water and the development of the roots.
- Crumbles the clods better.
- Ample clearance, does not clog.
- Fast work.
- It is not necessary to use a chopper.
- Great robustness and strength. Long service life.
- Very versatile

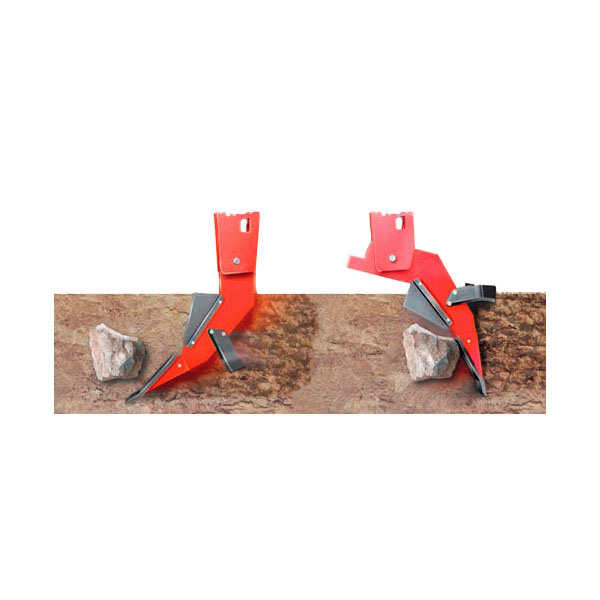

- Safety fuses prevent breakage of the arms and protect the tractor in case of possible hooking.

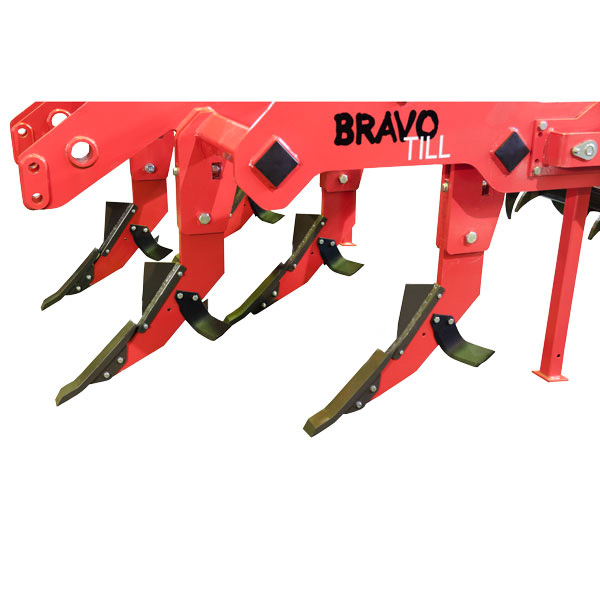

- Reversible boots: they prolong the life of the parts.
- Wide range, for tractors of all powers.
- Spare parts for easy installation.
Accessories
Hydraulic roller
To regulate with more precision and comfort the depth of work of the subsoiler and to crumble the clods of earth.
Technical features
| Model | Tractor power | Folding | Distribution folded arms | Width without roller | Width with roller | Depth | Clearance | No. of arms | Arm thickness | Distance between arms | Hitch category | Approx. weight with roller |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIRIUS-5R | 120-170 HP | Fixed | - | 2.30 m | 2.70 m | 55 cm | 86 cm | 5 | 30x160 mm | 50 / 100 cm | III | 1200 kg |
| SIRIUS-7 | 170-250 HP | Fixed | - | 2.64 m | 3.04 m | 55 cm | 86 cm | 7 | 30x160 mm | 40 / 80 cm | III | 1700 kg |
| SIRIUS-7R | 170-250 HP | Fixed | - | 3.05 m | 3.50 m | 55 cm | 86 cm | 7 | 30x160 mm | 47 / 94 cm | III | 1850 kg |
| SIRIUS-9R | 250-350 HP | Fixed | - | 4.25 m | 4.75 m | 55 cm | 86 cm | 9 | 30x160 mm | 50 / 100 cm | III - IV | 2150 kg |
| SIRIUS-9R-PC | 300-400 HP | Central hydraulique | 5+4 | 4.50 m (*) | 4,87 m (*) | 55 cm | 86 cm | 9 | 30x160 mm | 50 / 100 cm | III - IV | 3200 kg |
(*) Model with hydraulic folding: when the machine is folded, its total width is less than or equal to 3.05 m according to current traffic regulations.
