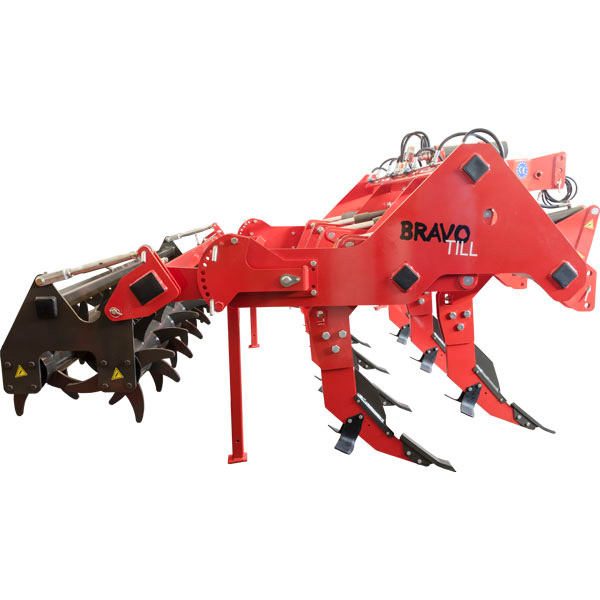

Polaris subsoilers with hydraulic safety system

Polaris subsoilers with hydraulic safety system

Non-stop rugged work

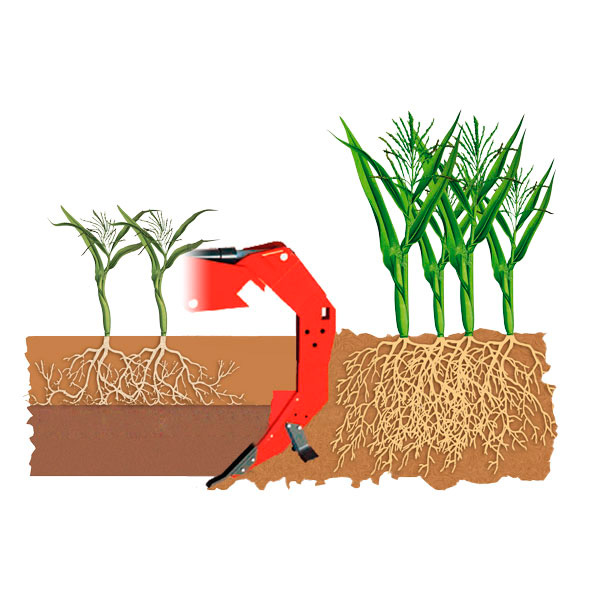

  • It decompresses and removes the subsoil to oxygenate it, to favour the filtration of the water and the development of the roots.
  • Crumbles the clods better.
  • Ample clearance, does not get blocked up.
  • Fast work.
  • It is not necessary to use a chopper.
  • Great robustness and strength.
  • Very versatile

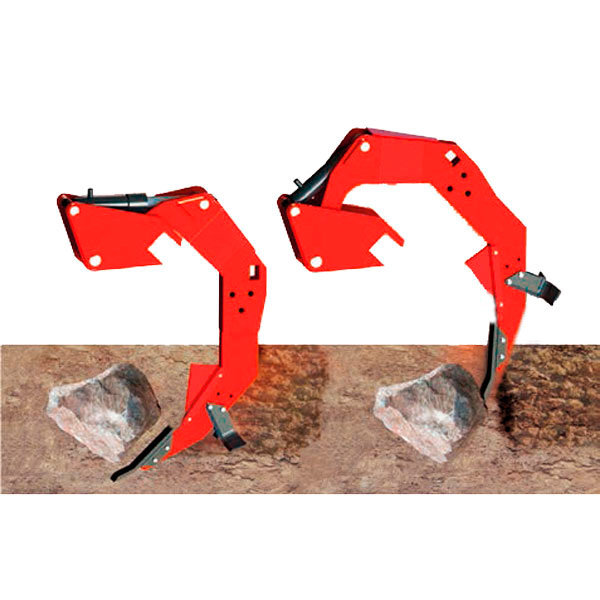

  • The hydraulic cylinders prevent the breaking of the arms and protect the tractor in case of possible hooking.
  • Non-stop work.
  • Reversible boots: they prolong the life of the parts.
  • For land with stones.
  • Spare parts that are easy to install.

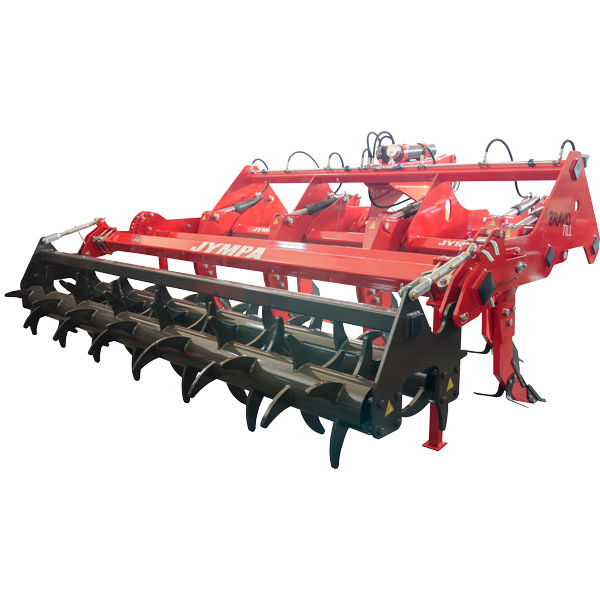

Hydraulic roller

To regulate with more precision and comfort the depth of work of the subsoiler and to crumble the clods of earth.

Technical features

folded arms
without roller
with roller
DepthClearanceNo. of
between arms
Approx. weight
with roller
POLARIS-5R120-170 HPFixed-2.30 m2.70 m55 cm95 cm540 x 160 cm50 / 100 cmIII1450 kg
POLARIS-7170-250 HPFixed-2.64 m3.04 m55 cm95 cm740 x 160 cm40 / 80 cmIII1900 kg
POLARIS-7R170-250 HPFixed-3.05 m3.50 m55 cm95 cm740 x 160 cm47 / 94 cmIII2050 kg
POLARIS-9R250-350 HPFixed-4.25 m4.75 m55 cm95 cm940 x 160 cm50 / 100 cmIII - IV2650 kg
POLARIS-9R-PC300-400 HPCentral hydraulic5+44.50 m (*)4.87 m (*)55 cm95 cm940 x 160 cm50 / 100 cmIII - IV4100 kg

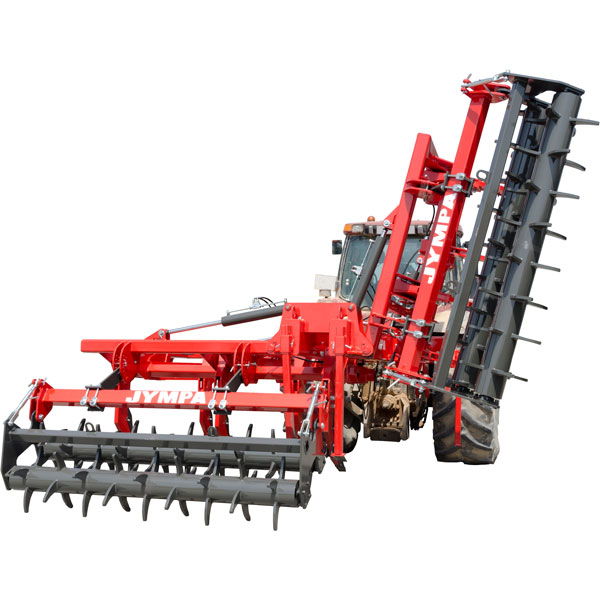

(*) Model with hydraulic folding: when the machine is folded, its total width is less than or equal to 3.05 m according to current traffic regulations.
