Quatro

Quatro: subsoiler Sirius + quick harrow

Think big

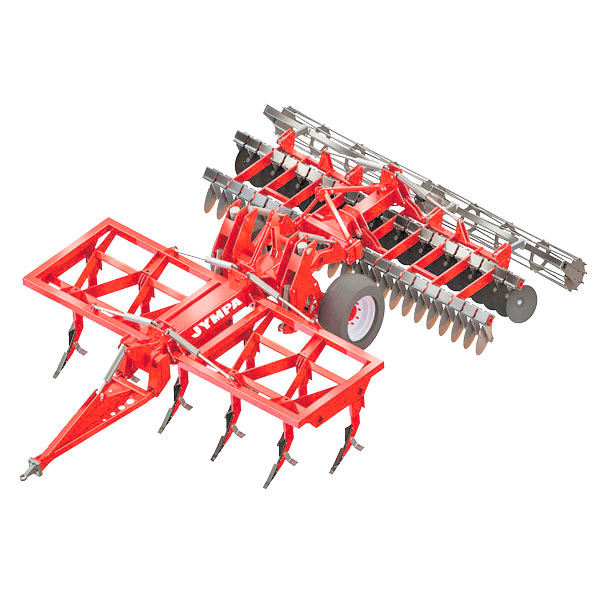

  • Combination machine consisting of a Bravo Till subsoiler, a quick harrow and a roller.
  • Performs several tasks at one time: it loosens the soil in depth while grinding weeds, stubble and other plant debris from the crop, leaving the soil excellently cultivated.
  • For the most powerful tractors .
  • Hydraulic folding for transport.
  • Front control wheels for greater stability.
  • Rear three-point, to adapt the quick harrow or other tool.
  • Bravo Till subsoiler arms with mechanical fuse, for safety.
  • Wide clearance.
  • Automatic coupling.
  • Maximum efficiency, versatility, robustness and performance .
  • Optimizes resources and minimizes costs.
  • Maximum return on your investment.
  • Spare parts that are easy to install.

Technical features

ModelTractor
power		FoldingDistribution
folded arms		Machine
width		Width of
transport		DepthClearanceNo. of
arms		Arms
section		Nº of
discs		Hitch
category		Approximate
weight
QUATRO-9250-350 HPCentral hydraulic4+54.60 m2.70 m30-55 cm86 cm930x160 mm38 mmRing6300 kg
QUATRO-11350-450 HPCentral hydraulic5+65.60 m2.70 m30-55 cm86 cm1130x160 mm46 mmRing6900 kg
QUATRO-13450-600 HPCentral hydraulic6+76.60 m2.70 m30-55 cm86 cm1330x160 mm54 mmRing7500 kg
