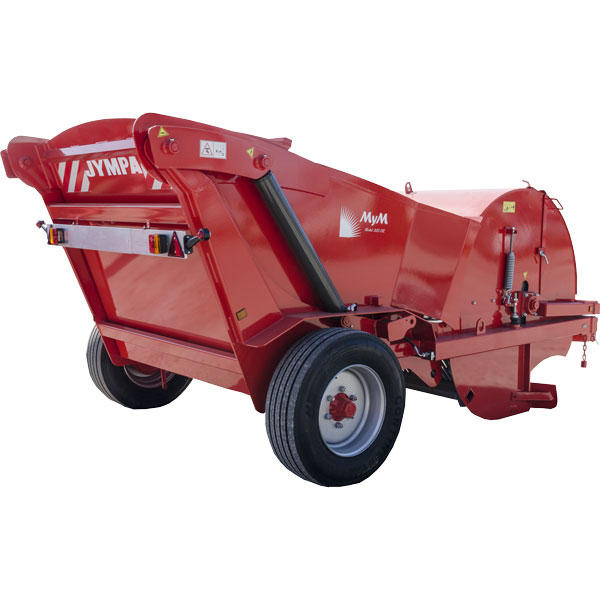

Mymesia stone pickers for small and medium-sized stones

Mymesia stone pickers for small and medium-sized stones

Stop going around medium stones

  • Increase the yield and the revaluation of the land .
  • Protect sensitive machinery such as harvesters or rotocultivators.
  • Collects small stones, up to 50 cm in diameter, from the surface of the ground.

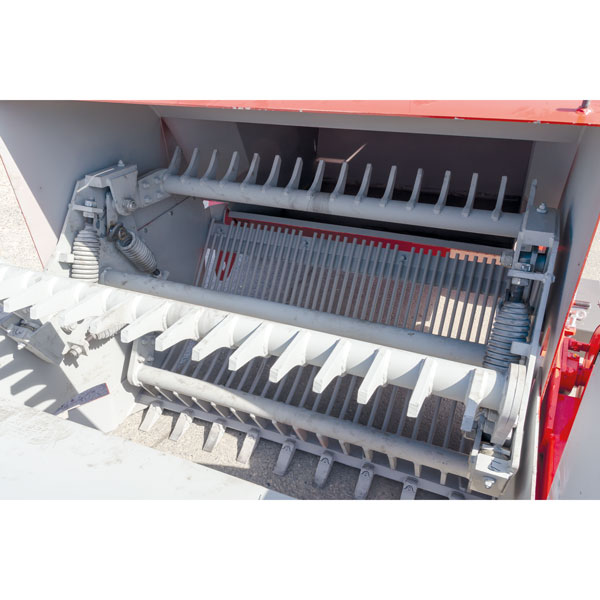

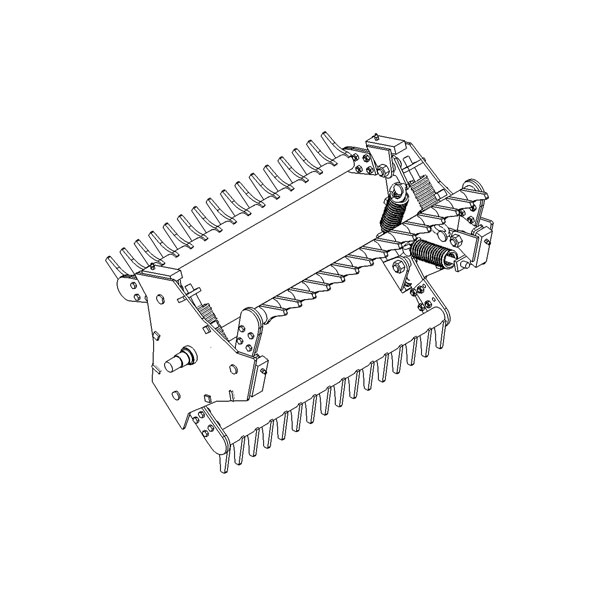

  • The stones are collected by a rotor equipped with combs or blades, mounted on a floating shaft.

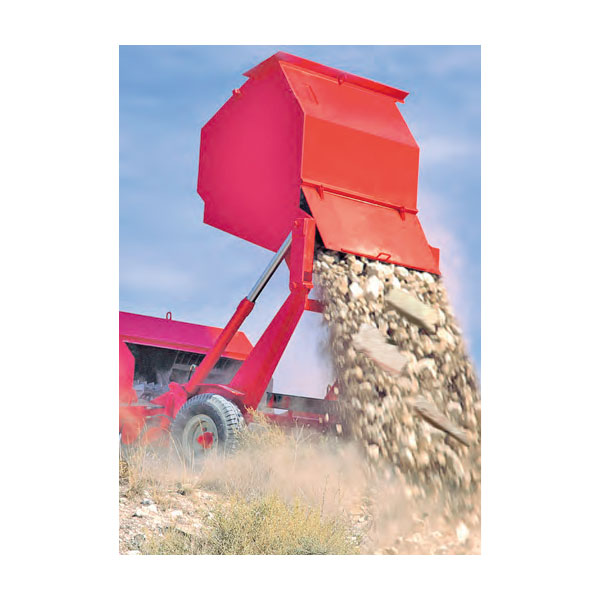

  • As the rotor picks up the stones, it deposits them in a hopper that is then emptied to one side of the farm.
  • Rotor powered with the PTO of the tractor.
  • Hydraulic hopper lift.
  • Spare parts that are easy to install.

Accessories

Grate with different thickness

Instead of the standard 50mm grate, a grate of 30, 40, 70, etc. mm can be installed to collect larger or smaller stones.

Hydraulic coupling

It allows more comfortable and more precise control of the work depth.

Technical features

ModelTractor
power		Machine
width		Working
width		HeightLenghtVolumeUnload
height		No. of
rakes		No. of
hopper blades		TiresApproximate
weight
MYM-185-RN060-080 HP2.10 m2.10 m2.04 m4.97 m2.70 m31.82 m84111.5/80 R 15.3"2700 kg
MYM-205-AM-RN070-090 HP2.48 m2.48 m2.04 m5.50 m3.30 m31.82 m952285/70 R 19.5"3620 kg
MYM-205-DX-RN070-090 HP2.48 m2.48 m2.04 m5.50 m3.30 m32.40 m952285/70 R 19.5"3800 kg
